What You Will Learn
In this course you will learn the basics of design for injection molding while following along with a molded part design in over 5 hours of video.
We will go over basics of molded part design, key terms, what molds look like and how they function, and learn to design for molded applications.

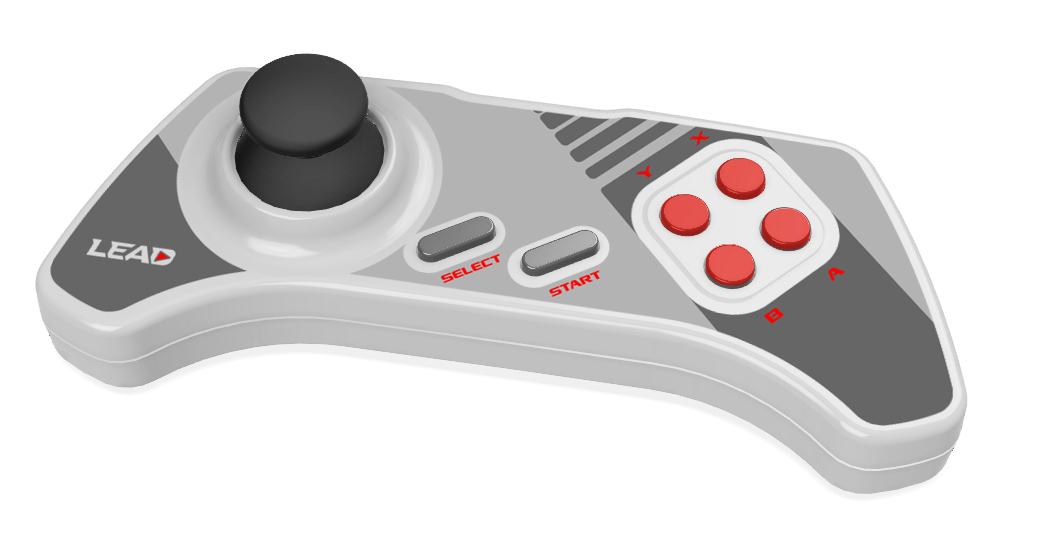

We will be making a molded version of our game controller covering topics like:
- Parameter Set-up
- Parting Line and Draft
- Reveal and Lip/Groove Features
- Screw Bosses
- Structural Features
- Quoting and Review
So If you are looking to expand your knowledge and learn about design for injection molding be sure to check out this course.
Course Curriculum
Prepare for the Course
Available in
days
days
after you enroll
Introduction
Available in
days
days
after you enroll
Injection Molded Controller Housing Design
Available in
days
days
after you enroll
- Setting Up A New Design With Parameters (17:37)
- Creating A Base Shape (57:35)
- Splitting The Top And Bottom Housings At The USB-C (22:13)
- Designing Mounting Bosses (34:20)
- Designing Buttons - Part 1 (23:20)
- Designing Buttons - Part 2 (34:57)
- Adding A Reveal (31:59)
- Draft Analysis And Adding A Web (21:11)
Mold Quotes
Available in
days
days
after you enroll
Conclusion
Available in
days
days
after you enroll
